RabbitMQ实践
示例项目地址: https://git.code.tencent.com/xinzhang0618/oa2.git feature/xinzhang_rabbitmq分支 参考文档: mq概念(这俩篇必读): https://www.yuque.com/fvy7xd/xinzhang/toi6onhttps://www.yuque.com/fvy7xd/xinzhang/if5xfk **延时队列: **https://zhuanlan.zhihu.com/p/130417736 **基本使用: **https://zhuanlan.zhihu.com/p/265732383
思路
rabbitmq的玩法比较丰富, 包括但不限于: 异步, 微服务通信, 多线程处理提高性能, 延时等. **难点在于一是本身的概念配置丰富, 二是不同的业务场景玩法比较花, 本篇着重于梳理mq的最佳简易配置, 并指出各功能点针对的应用场景. ** 在看本篇之前, 建议熟悉rabbitmq中概念, 并熟悉基本使用.
解析
部署略, 注意:
- 需要添加管理界面用户
- 启动管理插件
- 安装并启用死信交换机插件
- 当exchange/queue为durable时,** 若有配置变更, 需要删掉原来的使程序重新生成**
常用命令
- rabbitmqctl
rabbitmqctl --help 查看帮助
rabbitmqctl status 查看状态
rabbitmqctl shutdown/stop/stop_app 停止
rabbitmqctl start_app 启动
- rabbitmq-plugins
rabbitmq-plugins --help 查看帮助
rabbitmq-plugins list 查看插件列表
rabbitmq-plugins enable <pluginName> 启用插件
rabbitmq-plugins disable <pluginName> 禁用插件
部署补充:
1.需启用管理插件, rabbitmq_plugins enable rabbitmq_management
2.需安装并启用死信交换机插件
- 上 https://www.rabbitmq.com/community-plugins.html 找 rabbitmq_delayed_message_exchange
- 下载rabbitmq_delayed_message_exchange-3.8.0.ez扔到/usr/lib/rabbitmq/plugins/下
- 启用rabbitmq-plusgins enable rabbitmq_delayed_message_exchange配置
注: 示例项目为单体多模块, 交换机都使用topic类型, 项目结构如下图
依赖
oa-core, oa-consumer, oa-biz三个模块都需配置
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
</dependency>基础配置
以下配置都在oa-core模块下, 这部分主要是对mq的通用配置以及template的封装
Message抽象类, 包含优先级, 延迟分钟, 租户等属性, 具体实现类需要指定交换机以及路由key
package top.xinzhang0618.oa.amqp;
import top.xinzhang0618.oa.BizContext;
/**
* MQ消息抽象类 实现类需要提供消息发送的exchange，避免发送到默认exchange 实现类需要提供消息的routingKey，用于消息路由
*/
public abstract class Message {
/**
* 优先级
*/
private Integer priority;
/**
* 延迟分钟
*/
private Integer delayMinutes;
/**
* 租户ID
*/
private Long tenantId;
public Message() {
this.tenantId = BizContext.getTenantId();
}
public Long getTenantId() {
return tenantId;
}
public void setTenantId(Long tenantId) {
this.tenantId = tenantId;
}
public Integer getPriority() {
return priority;
}
public void setPriority(Integer priority) {
this.priority = priority;
}
public Integer getDelayMinutes() {
return delayMinutes;
}
public void setDelayMinutes(Integer delayMinutes) {
this.delayMinutes = delayMinutes;
}
/**
* 返回消息对应的路由器
*
* @return ExchangeName
*/
public String exchange() {
return "oa";
}
/**
* 返回消息路由键
*
* @return RoutingKey
*/
public abstract String routingKey();
@Override
public String toString() {
return "Message{" +
"priority=" + priority +
", delayMinutes=" + delayMinutes +
", tenantId=" + tenantId +
'}';
}
}MqProducer消息发布接口
package top.xinzhang0618.oa.amqp;
import java.util.Collection;
/**
* 消息生产者.
*/
public interface MqProducer {
/**
* 发送消息.
*/
void send(Message message);
/**
* 批量发送消息.
*/
void send(Collection<? extends Message> messages);
}RabbitMqProducer, rabbitmq消息发布的实现 注意: 这里包装了一层SpringEvent来处理mq事务(是否性能更佳存疑...) rabbbitmq的事务: https://blog.csdn.net/u013256816/article/details/55515234 applicationEvent事务: https://blog.csdn.net/crowhyc/article/details/96433001 rabbitmq原生事务性能差, 因此不用; ApplicationEvent的消费端注解@TransactionalEventListener默认绑定的监听阶段是 TransactionPhase.AFTER_COMMIT即事务提交后, 如果事务回滚了, 消费端是接收不到消息的.
同时, 也aplicationEvent也解决了"生产端事务未提交, 消费端从数据库中查不到数据"这一问题
package top.xinzhang0618.oa.amqp;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnBean;
import org.springframework.context.ApplicationEventPublisher;
import org.springframework.stereotype.Component;
import org.springframework.transaction.event.TransactionalEventListener;
import top.xinzhang0618.oa.Assert;
import javax.annotation.Resource;
import java.util.Collection;
import java.util.List;
/**
* 消息模板包装类.
* 这里利用applicationEvent的事务来取代rabbitmq的事务
*/
@Component
@ConditionalOnBean(RabbitTemplate.class)
public class RabbitMqProducer implements MqProducer {
@Autowired
private ApplicationEventPublisher applicationEventPublisher;
/**
* 发送消息.
*
* @param message 消息
*/
@Override
public void send(Message message) {
applicationEventPublisher.publishEvent(new MessageSendingEvent(message.routingKey(), message));
}
@Override
public void send(Collection<? extends Message> messages) {
messages.forEach(this::send);
}
@Component
public static class RabbitMqMessageSender {
@Resource
private RabbitTemplate rabbitTemplate;
@TransactionalEventListener(fallbackExecution = true, classes = MessageSendingEvent.class)
public void sendMessage(MessageSendingEvent messageSendingEvent) {
List<Message> messages = messageSendingEvent.getMessages();
if (Assert.isEmpty(messages)) {
return;
}
send(messages);
}
private void send(Message message) {
if (message.getPriority() == null && message.getDelayMinutes() == null) {
rabbitTemplate.convertAndSend(message.exchange(), message.routingKey(), message);
return;
}
rabbitTemplate.convertAndSend(message.exchange(), message.routingKey(), message, msg -> {
if (message.getPriority() != null) {
msg.getMessageProperties().setPriority(message.getPriority());
}
if (message.getDelayMinutes() != null) {
msg.getMessageProperties().setDelay(1000 * 60 * message.getDelayMinutes());
}
return msg;
});
}
private void send(List<Message> messages) {
messages.forEach(this::send);
}
}
}MessageSendingEvent, ApplicationEvent的实现
package top.xinzhang0618.oa.amqp;
import org.springframework.context.ApplicationEvent;
import java.util.Arrays;
import java.util.List;
/**
* 消息事件.
*/
public class MessageSendingEvent extends ApplicationEvent {
private final List<Message> messages;
public MessageSendingEvent(Object source, Message... messages) {
super(source);
this.messages = Arrays.asList(messages);
}
public List<Message> getMessages() {
return messages;
}
@Override
public String toString() {
return "MessageSendingEvent{" +
"messages=" + messages +
'}';
}
}另外 BaseMqConfig, 整个项目的总交换机配置
package top.xinzhang0618.oa.amqp;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* @author xinzhang
* @date 2021/2/8 14:05
*/
@Configuration
public class BaseMqConfig {
/**
* 总交换机.
*/
private static final String EXCHANGE_OA = "oa";
/**
* OA总交换机.
*/
@Bean
public TopicExchange oaExchange() {
return new TopicExchange(EXCHANGE_OA);
}
@Bean
public RabbitTemplate rabbitTemplate(final ConnectionFactory connectionFactory) {
final RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
rabbitTemplate.setMessageConverter(new FastJson2JsonMessageConverter());
return rabbitTemplate;
}
}FastJson2JsonMessageConverter, 序列化转换器, 在BaseMqConfig的生产端rabbitTemplate的Bean中有配置, 消费端的factory也需要配置, 后文会提到
package top.xinzhang0618.oa.amqp;
import com.alibaba.fastjson.JSON;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.support.converter.AbstractMessageConverter;
import org.springframework.amqp.support.converter.ClassMapper;
import org.springframework.amqp.support.converter.DefaultClassMapper;
import org.springframework.amqp.support.converter.MessageConversionException;
/**
* @author xinzhang
* @date 2021/2/8 11:13
*/
public class FastJson2JsonMessageConverter extends AbstractMessageConverter {
public static final String DEFAULT_CHARSET = "UTF-8";
public static final String DEFAULT_CONTENT_TYPE = "application/json";
private static final ClassMapper CLASS_MAPPER = new FastJson2JsonMessageConverter.FastJsonClassMapper();
public FastJson2JsonMessageConverter() {
}
public ClassMapper getClassMapper() {
return CLASS_MAPPER;
}
@Override
protected Message createMessage(Object object, MessageProperties messageProperties) {
byte[] bytes = JSON.toJSONBytes(object);
messageProperties.setContentType(DEFAULT_CONTENT_TYPE);
messageProperties.setContentEncoding(DEFAULT_CHARSET);
messageProperties.setContentLength(bytes.length);
this.getClassMapper().fromClass(object.getClass(), messageProperties);
return new Message(bytes, messageProperties);
}
@Override
public Object fromMessage(Message message) throws MessageConversionException {
Object content = null;
MessageProperties properties = message.getMessageProperties();
if (properties != null) {
String contentType = properties.getContentType();
if (DEFAULT_CONTENT_TYPE.equals(contentType)) {
Class<?> targetClass = this.getClassMapper().toClass(message.getMessageProperties());
content = JSON.parseObject(message.getBody(), targetClass);
}
}
if (content == null) {
content = message.getBody();
}
return content;
}
public static class FastJsonClassMapper extends DefaultClassMapper {
public FastJsonClassMapper() {
this.setTrustedPackages("*");
}
}
}消费端配置
以下配置在oa-consumer模块, 这部分主要是对rabbitmq监听容器的配置
配置文件
spring:
rabbitmq:
host: 47.94.148.180
port: 5672
username: bite
password: bite
virtual-host: xinzhang
oa:
consumer:
demo:
exchange:
concurrent: 5
maxConcurrent: 10启动类添加注解
@EnableAsync
@EnableRabbit
@SpringBootApplication(scanBasePackages = "top.xinzhang0618.oa")
public class ConsumerApplication {
public static void main(String[] args) {
SpringApplication.run(ConsumerApplication.class, args);
}
}ConsumerConfig, 消费端factory配置 注意: 核心参数是prefetchCount, concurrent, maxConcurrent, 后两个从配置文件中读取 factory配置了fastJson序列化 (confirm默认关闭, ack默认开启)这里开启了手动ack, 正常场景直接自动ack就行, ack的应用场景下文会特别提到
package top.xinzhang0618.oa.config;
import org.springframework.amqp.core.AcknowledgeMode;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.listener.RabbitListenerContainerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import top.xinzhang0618.oa.amqp.FastJson2JsonMessageConverter;
/**
* @author xinzhang
* @date 2021/2/8 15:27
*/
@Configuration
public class ConsumerConfig {
@Value("${oa.consumer.demo.exchange.concurrent:1}")
private Integer concurrent;
@Value("${oa.consumer.demo.exchange.maxConcurrent:1}")
private Integer maxConcurrent;
@Bean
public RabbitListenerContainerFactory<?> rabbitListenerContainerFactory(ConnectionFactory connectionFactory) {
SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
factory.setConnectionFactory(connectionFactory);
factory.setMessageConverter(new FastJson2JsonMessageConverter());
factory.setAcknowledgeMode(AcknowledgeMode.MANUAL);
// 参考: https://www.cnblogs.com/throwable/p/13834465.html
// prefetchCount表示手动ack情况下队列未ack的预取或说阻塞的消息的最大数, 该参数用来使消费端负载均衡, 默认250, 官方推荐30
factory.setPrefetchCount(30);
// 并发消费者数, 即开多线程消费, 比如2个consumer则默认单线程即2个channel, 将concurrent设置为5后, 变为10个channel
factory.setConcurrentConsumers(concurrent);
factory.setMaxConcurrentConsumers(maxConcurrent);
return factory;
}
}AbstractConsumer, consumer基类 作用: 1. 做统一异常以及日志处理; 2. 做手动ack等
package top.xinzhang0618.oa.consumer;
import com.alibaba.fastjson.JSON;
import com.rabbitmq.client.Channel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import top.xinzhang0618.oa.amqp.Message;
import java.io.IOException;
/**
* @author xinzhang
* @date 2021/2/19 13:59
*/
public abstract class AbstractConsumer {
private static final Logger LOGGER = LoggerFactory.getLogger(AbstractConsumer.class);
protected <T extends Message> void run(T message, final Channel channel, long tag,
Runnable runnable) throws IOException {
try {
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("{}处理消息：{}", this.getClass().getName(), message);
}
runnable.run();
channel.basicAck(tag, false);
} catch (Exception e) {
LOGGER.error("消息处理异常！{},{}", this.getClass().getName(), JSON.toJSONString(message));
LOGGER.error("消息处理异常！", e);
channel.basicReject(tag, false);
}
}
}消费者示例 Test1Consumer
package top.xinzhang0618.oa.consumer;
import com.alibaba.fastjson.JSON;
import com.rabbitmq.client.Channel;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.messaging.handler.annotation.Header;
import org.springframework.stereotype.Component;
import top.xinzhang0618.oa.amqp.demo.MqConstants;
import top.xinzhang0618.oa.amqp.demo.TestMessage1;
import top.xinzhang0618.oa.amqp.demo.TestMessage3;
import java.io.IOException;
import java.time.LocalDateTime;
/**
* @author xinzhang
* @date 2021/2/8 15:10
*/
@Component
@RabbitListener(queues = MqConstants.QUEUE_TEST1)
public class Test1Consumer extends AbstractConsumer {
@RabbitHandler(isDefault = true)
public void test(TestMessage1 testMessage1, Channel channel,
@Header(AmqpHeaders.DELIVERY_TAG) long tag) throws IOException {
run(testMessage1, channel, tag, () -> {
System.out.println("test1队列收到消息了, 消息内容为: " + JSON.toJSON(testMessage1) + ", 消息接收时间为: " + LocalDateTime.now());
});
}
@RabbitHandler
public void test3(TestMessage3 testMessage3, Channel channel,
@Header(AmqpHeaders.DELIVERY_TAG) long tag) throws IOException {
run(testMessage3, channel, tag, () -> {
System.out.println("test1队列收到消息了, 消息内容为: " + JSON.toJSON(testMessage3) + ", 消息接收时间为: " + LocalDateTime.now());
});
}
}Test2Consumer
package top.xinzhang0618.oa.consumer;
import com.alibaba.fastjson.JSON;
import com.rabbitmq.client.Channel;
import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.messaging.handler.annotation.Header;
import org.springframework.stereotype.Component;
import top.xinzhang0618.oa.amqp.demo.MqConstants;
import top.xinzhang0618.oa.amqp.demo.TestMessage2;
import java.io.IOException;
import java.time.LocalDateTime;
/**
* @author xinzhang
* @date 2021/2/8 15:10
*/
@Component
@RabbitListener(queues = MqConstants.QUEUE_TEST2)
public class Test2Consumer extends AbstractConsumer {
@RabbitHandler
public void test(TestMessage2 testMessage2, Channel channel,
@Header(AmqpHeaders.DELIVERY_TAG) long tag) throws IOException {
run(testMessage2, channel, tag, () -> {
System.out.println("test2队列收到消息了, 消息内容为: " + JSON.toJSON(testMessage2) + ", 消息接收时间为: " + LocalDateTime.now());
});
}
}业务端配置
以下配置在oa-biz模块, 这部分跟业务紧密相关, 主要是业务交换机以及队列的配置
示例配置 DemoMqConfig
package top.xinzhang0618.oa.amqp.demo;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.condition.ConditionalOnBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import top.xinzhang0618.oa.amqp.BaseMqConfig;
/**
* 交换机配置
*
* @author xinzhang
* @date 2021/2/8 14:35
*/
@ConditionalOnBean(BaseMqConfig.class)
@Configuration
public class DemoMqConfig {
/**
* 示例交换机
*/
@Bean
public Exchange demoExchange() {
return ExchangeBuilder.topicExchange(MqConstants.EXCHANGE_DEMO).delayed().build();
}
/**
* 示例交换机绑定总交换机, routingKey: oa.demo.#
*/
@Bean
public Binding demoExchangeBindingOaExchange(@Qualifier("oaExchange") TopicExchange oaExchange,
@Qualifier("demoExchange") Exchange demoExchange) {
return BindingBuilder.bind(demoExchange).to(oaExchange).with(MqConstants.EXCHANGE_DEMO_BINDING_KEY);
}
/**
* 测试1队列
*/
@Bean
public Queue test1Queue() {
return QueueBuilder.durable(MqConstants.QUEUE_TEST1).build();
}
/**
* 测试1队列 绑定 demo交换机, routingKey: oms.demo.test1
*/
@Bean
public Binding test1QueueBindingDemoExchange(@Qualifier("demoExchange") Exchange demoExchange,
@Qualifier("test1Queue") Queue test1Queue) {
return BindingBuilder
.bind(test1Queue)
.to(demoExchange)
.with(MqConstants.QUEUE_TEST1_BINDING_KEY)
.noargs();
}
/**
* 测试2队列
*/
@Bean
public Queue test2Queue() {
return QueueBuilder.durable(MqConstants.QUEUE_TEST2).build();
}
/**
* 测试2队列 绑定 demo交换机, routingKey: oms.demo.test2
*/
@Bean
public Binding test2QueueBindingDemoExchange(@Qualifier("demoExchange") Exchange demoExchange,
@Qualifier("test2Queue") Queue test1Queue) {
return BindingBuilder
.bind(test1Queue)
.to(demoExchange)
.with(MqConstants.QUEUE_TEST2_BINDING_KEY)
.noargs();
}
/**

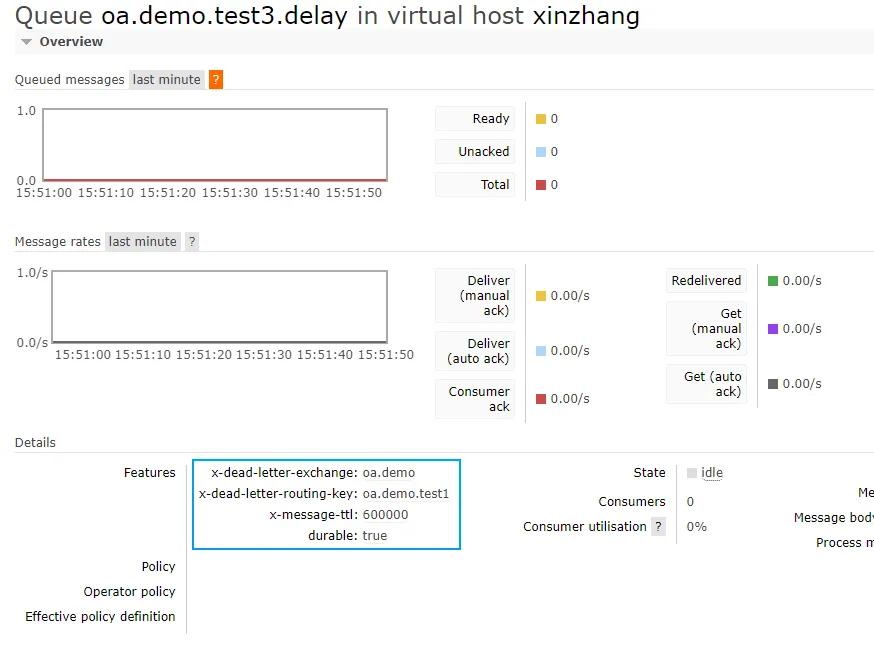

* 测试3延时队列, 延迟10min
* 这个队列没有消费者, 消息过期后由死信交换机demo转发至oa.demo.test1
*/
@Bean
public Queue test3DelayQueue() {
return QueueBuilder
.durable(MqConstants.QUEUE_TEST3_DELAY)
.withArgument("x-dead-letter-exchange", MqConstants.EXCHANGE_DEMO)
.withArgument("x-dead-letter-routing-key", MqConstants.QUEUE_TEST1_BINDING_KEY)
.withArgument("x-message-ttl", 1000 * 60 * 10)
.build();
}
/**
* 测试3延时队列 绑定 demo交换机, routingKey: oms.demo.test3.delay
*/
@Bean
public Binding test3DelayQueueBindingDemoExchange(@Qualifier("demoExchange") Exchange demoExchange,
@Qualifier("test3DelayQueue") Queue test3DelayQueue) {
return BindingBuilder
.bind(test3DelayQueue)
.to(demoExchange)
.with(MqConstants.QUEUE_TEST3_DELAY_BINDING_KEY)
.noargs();
}
}MqConstants
package top.xinzhang0618.oa.amqp.demo;
/**
* @author xinzhang
* @date 2021/2/8 14:14
*/
public class MqConstants {
/**
* 示例交换机.
*/
public static final String EXCHANGE_DEMO = "oa.demo";
public static final String EXCHANGE_DEMO_BINDING_KEY = "oa.demo.#";
/**
* 测试队列1
*/
public static final String QUEUE_TEST1 = "oa.demo.test1";
public static final String QUEUE_TEST1_BINDING_KEY = "oa.demo.test1";
/**
* 测试队列2
*/
public static final String QUEUE_TEST2 = "oa.demo.test2";
public static final String QUEUE_TEST2_BINDING_KEY = "oa.demo.test2";
/**
* 测试队列3, 延时队列
*/
public static final String QUEUE_TEST3_DELAY = "oa.demo.test3.delay";
public static final String QUEUE_TEST3_DELAY_BINDING_KEY = "oa.demo.test3.delay";
}TestMessage1
package top.xinzhang0618.oa.amqp.demo;
import top.xinzhang0618.oa.amqp.Message;
/**
* @author xinzhang
* @date 2021/2/4 18:15
*/
public class TestMessage1 extends Message {
private String msg;
@Override
public String exchange() {
return super.exchange();
}
@Override
public String routingKey() {
return "oa.demo.test1";
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
@Override
public String toString() {
return "TestMessage1{" +
"msg='" + msg + '\'' +
'}';
}
}TestMessage2
package top.xinzhang0618.oa.amqp.demo;
import top.xinzhang0618.oa.amqp.Message;
/**
* @author xinzhang
* @date 2021/2/4 18:15
*/
public class TestMessage2 extends Message {
private String msg;
@Override
public String exchange() {
return super.exchange();
}
@Override
public String routingKey() {
return "oa.demo.test2";
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
@Override
public String toString() {
return "TestMessage2{" +
"msg='" + msg + '\'' +
'}';
}
}TestMessage3
package top.xinzhang0618.oa.amqp.demo;
import top.xinzhang0618.oa.amqp.Message;
/**
* @author xinzhang
* @date 2021/2/4 18:15
*/
public class TestMessage3 extends Message {
private String msg;
@Override
public String exchange() {
return super.exchange();
}
@Override
public String routingKey() {
return "oa.demo.test3.delay";
}
public String getMsg() {
return msg;
}
public void setMsg(String msg) {
this.msg = msg;
}
@Override
public String toString() {
return "TestMessage2{" +
"msg='" + msg + '\'' +
'}';
}
}测试

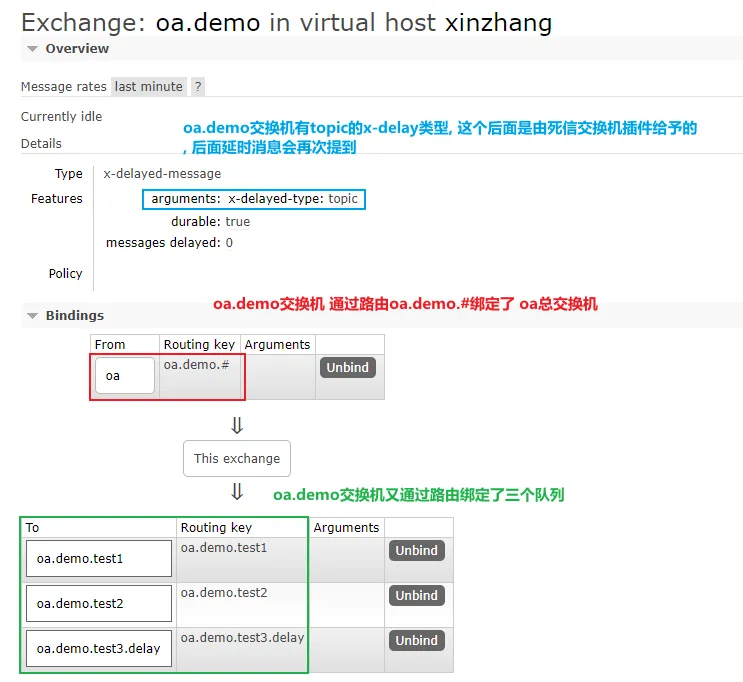

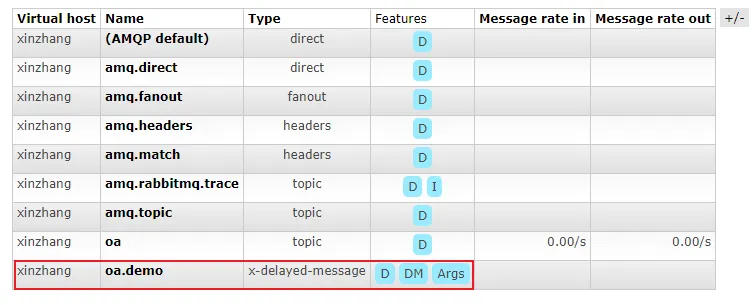

至此， 基础的配置都已完成，后续我们再来针对一个个功能点做分析， 先做简单的消息测试，配置完成后结构如下
启动消费者服务, 发送TestMessage1和TestMessage2, 两个消费者能够正常接收到消息并消费
@Test
public void test() {
TestMessage1 testMessage1 = new TestMessage1();
testMessage1.setMsg("这里是test1测试消息, 消息发送时间为: " + LocalDateTime.now());
TestMessage2 testMessage2 = new TestMessage2();
testMessage2.setMsg("这里是test2测试消息, 消息发送时间为: " + LocalDateTime.now());
producer.send(testMessage1);
producer.send(testMessage2);
}
-----------------------------
14:35:37.214 DEBUG [SimpleAsyncTaskExecutor-4] t.x.oa.consumer.AbstractConsumer - top.xinzhang0618.oa.consumer.Test1Consumer处理消息：TestMessage1{msg='这里是test1测试消息, 消息发送时间为: 2021-02-19T14:35:37.089'}
test1队列收到消息了, 消息内容为: {"msg":"这里是test1测试消息, 消息发送时间为: 2021-02-19T14:35:37.089"}, 消息接收时间为: 2021-02-19T14:35:37.214
14:35:37.214 DEBUG [SimpleAsyncTaskExecutor-5] t.x.oa.consumer.AbstractConsumer - top.xinzhang0618.oa.consumer.Test2Consumer处理消息：TestMessage2{msg='这里是test2测试消息, 消息发送时间为: 2021-02-19T14:35:37.089'}
test2队列收到消息了, 消息内容为: {"msg":"这里是test2测试消息, 消息发送时间为: 2021-02-19T14:35:37.089"}, 消息接收时间为: 2021-02-19T14:35:37.214消息的准确投递问题
oms参考方案如下: 消息全流程: 生产端-->broker-->消费端 ● 使用了applicationEvent取代mq事务来保证消息从生产端-->broker的准确投递(若事务回滚则mq不会发送消息) ● 消费端若消费失败 ○ 利用手动ack对特定异常, 进行消息回队, 等待再次消费 ○ 利用定时器进行业务补偿, 比如因为缺货或并发导致配货失败, 会有"缺货重配", "定时扫表再次配货"等定时任务
发布者确认以及消费者应答
参考文档: https://www.rabbitmq.com/confirms.htmlhttps://www.zhihu.com/question/41976893
发布者确认一般用于事务控制, 默认关闭, 这里没用到 消费者应答默认开启, 这里采用手动ack的方式 ack机制能灵活的控制消息的消费, 拒绝后可以选择性的删除或者重新入队, 比如oms中使用consumer ack来实现 "如果消费端爆出版本异常(乐观锁), 则消息重新入队(后续再被消费), 其余情况则直接丢弃" 这一功能
使用ack示例代码如下:
- 先打开手动ack
factory.setAcknowledgeMode(AcknowledgeMode.MANUAL);- 在AbstractConsumer中针对特殊异常做处理
package com.greatonce.oms.consumer;
import com.greatonce.core.util.JsonUtil;
import com.greatonce.oms.domain.OmsException;
import com.greatonce.oms.domain.SysExceptions;
import com.greatonce.oms.message.Message;
import com.greatonce.oms.util.consumer.MessageListenerContainerManager;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import javax.annotation.PostConstruct;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
/**
* 消息处理抽象类.
*
* @author ginta
* @author Shenzhen Greatonce Co Ltd
* @version 2018/3/23
*/
public abstract class AbstractConsumer {
private static final Logger LOGGER = LoggerFactory.getLogger(AbstractConsumer.class);
@Autowired
private MessageListenerContainerManager messageListenerContainerManager;
@PostConstruct
protected void init() {
messageListenerContainerManager.registerContainer(containerId(), containerName());
}
protected abstract String containerId();
protected abstract String containerName();
protected <T extends Message> void run(T message, final Channel channel, long tag,
Runnable runnable) throws IOException {
try {
if (LOGGER.isDebugEnabled()) {
LOGGER.debug("{}处理消息：{}", this.getClass().getName(), message);
}
runnable.run();
channel.basicAck(tag, false);
} catch (OmsException e) {
LOGGER.error("消息处理异常！{},{},{}", this.getClass().getName(), JsonUtil.toJson(message), e.getMessage());
LOGGER.error("消息处理异常！", e);
if (SysExceptions.VERSION_CHANGED.equals(e.getMessage())
|| SysExceptions.MALL_SECURITY_API_ERROR.equals(e.getMessage())) {
channel.basicReject(tag, true);
} else {
channel.basicReject(tag, false);
}
} catch (Exception e) {
LOGGER.error("消息处理异常！{},{}", this.getClass().getName(), JsonUtil.toJson(message));
LOGGER.error("消息处理异常！", e);
channel.basicReject(tag, false);
}
}
}basicReject与basicNack方法区别: basicReject：是接收端告诉服务器这个消息我拒绝接收,不处理,可以设置是否放回到队列中还是丢掉，而且只能一次拒绝一个消息,官网中有明确说明不能批量拒绝消息，为解决批量拒绝消息才有了basicNack。 basicNack：可以一次拒绝N条消息，客户端可以设置basicNack方法的multiple参数为true，服务器会拒绝指定了delivery_tag的所有未确认的消息.
DeliveryTag作用: 对于每个Channel来说，每个消息都会有一个DeliveryTag，一般用接收消息的顺序来表示：1,2,3,4 等等
消息的优先级
只有在消费端消息堆积的时候才有效果, 不然也没卵用, 比如oms中转化队列配置了"下载的销售单"比"从第三方系统同步的销售单"更优先进行转化
使用示例:
- 先设置队列的优先级, 表示能容纳的消息的最大优先级, 数字越大越优先
@Bean
public Queue salesTranslateQueue() {
return QueueBuilder
.durable(QUEUE_TRADE_SALES_ORDER_TRANSLATE)
.withArgument("x-max-priority", 2)
.build();
}- 然后设置消息的优先级
/**
* 销售单从第三方系统同步消息.
*
* @author ginta
* @author Shenzhen Greatonce Co Ltd
* @version 2018/3/7
*/
public class MallSalesOrderSynchronizedMessage extends MallSalesOrderMessage {
public MallSalesOrderSynchronizedMessage(Long mallSalesOrderId, Long storeId, String tradeId) {
super(mallSalesOrderId, storeId, tradeId,"synchronized");
this.setPriority(1);
}
}/**
* 销售单已下载消息.
*
* @author ginta
* @author Shenzhen Greatonce Co Ltd
* @version 2018/3/7
*/
public class MallSalesOrderDownloadMessage extends MallSalesOrderMessage {
public MallSalesOrderDownloadMessage(Long mallSalesOrderId, Long storeId, String tradeId) {
super(mallSalesOrderId, storeId, tradeId,"download");
this.setPriority(2);
}
}- 在配置上, 上面的RabbitMqProducer示例代码中已经将priority属性设置进MessageProperties了
rabbitTemplate.convertAndSend(message.exchange(), message.routingKey(), message, msg -> {
if (message.getPriority() != null) {
msg.getMessageProperties().setPriority(message.getPriority());
}
if (message.getDelayMinutes() != null) {
msg.getMessageProperties().setDelay(1000 * 60 * message.getDelayMinutes());
}
return msg;
});延迟消息
利用队列的ttl以及死信队列实现 前言 这里也可以利用消息的ttl实现, 需要设置消息的expiration属性 补充: 当队列和消息同时有过期时间时, 更短的一个会生效
但有个严重问题是, 消息会在队列进行排队顺序消费, 若前一消息的ttl大于后一消息, 则后一消息到期后依然要等到前面消息消费完 比如按顺序发送"2min过期的消息", "1min过期的消息", 消费端会在2min后一起消费这两条消息, 因此在示例项目的配置中(message的封装上, rabbitmqProducer的封装上), 我完全摈弃了消息的ttl这一特性
if (this.delayMinutes != null) {
int delayTimemillis = 1000 * 60 * this.delayMinutes;
if (delayType == DelayType.EXCHANGE) {
message.getMessageProperties().setDelay(delayTimemillis);
} else {
message.getMessageProperties().setExpiration(String.valueOf(delayTimemillis));
}
}使用流程 这一方案, 可以参考上面test3DelayQueue的配置, 这个队列10分钟过期, 没有消费者 消息过期后, 会由"x-dead-letter-exchange"通过"x-dead-letter-routing-key"将消息转发出去, 队列配置如下 因此使用示例: 发送消息到test3DelayQueue队列, 过10分钟后消息过期转发到路由oa.demo.test1, 然后Test1Consumer消费, 实现了消息延迟10分钟消费
/**
* 测试3延时队列, 延迟10min
* 这个队列没有消费者, 消息过期后由死信交换机demo转发至oa.demo.test1
*/
@Bean
public Queue test3DelayQueue() {
return QueueBuilder
.durable(MqConstants.QUEUE_TEST3_DELAY)
.withArgument("x-dead-letter-exchange", MqConstants.EXCHANGE_DEMO)
.withArgument("x-dead-letter-routing-key", MqConstants.QUEUE_TEST1_BINDING_KEY)
.withArgument("x-message-ttl", 1000 * 60 * 10)
.build();
}
/**
* 测试3延时队列 绑定 demo交换机, routingKey: oms.demo.test3.delay
*/
@Bean
public Binding test3DelayQueueBindingDemoExchange(@Qualifier("demoExchange") Exchange demoExchange,
@Qualifier("test3DelayQueue") Queue test3DelayQueue) {
return BindingBuilder
.bind(test3DelayQueue)
.to(demoExchange)
.with(MqConstants.QUEUE_TEST3_DELAY_BINDING_KEY)
.noargs();
}从管理界面上也能看到各个标签, 鼠标挪到标签上会有信息显示
利用死信交换机插件实现
这一实现更加简单, 安装并启用插件后, 声明交换机的delay属性 一个消息变成死信的条件有： 1.消费被拒绝（basic.reject 或者 basic.nack），并且参数 requeue = false 时 2.消息TTL（存活时间）过期 3.队列达到最大长度 rabbitMQ对于死信消息的处理是：如果配置了死信队列，成为死信的消息会被丢进死信队列，如果没有则被丢弃。
/**
* 示例交换机
*/
@Bean
public Exchange demoExchange() {
return ExchangeBuilder.topicExchange(MqConstants.EXCHANGE_DEMO).delayed().build();
}管理界面也能看到交换机类型变为"x-delayed-message"
给消息设置一定的延迟时间, 这里也要注意是消息的"x-delay"属性 交换机会等待delay的时间, 然后再将消息转发到对应的队列中
rabbitTemplate.convertAndSend(message.exchange(), message.routingKey(), message, msg -> {
if (message.getPriority() != null) {
msg.getMessageProperties().setPriority(message.getPriority());
}
if (message.getDelayMinutes() != null) {
msg.getMessageProperties().setDelay(1000 * 60 * message.getDelayMinutes());
}
return msg;
});测试如下
@Test
public void testSimpleConsume() {
TestMessage1 testMessage1 = new TestMessage1();
testMessage1.setDelayMinutes(1);
testMessage1.setMsg("这里是test1测试消息, 消息发送时间为: " + LocalDateTime.now());
producer.send(testMessage1);
}
-------------------
16:02:33.276 DEBUG [SimpleAsyncTaskExecutor-5] t.x.oa.consumer.AbstractConsumer - top.xinzhang0618.oa.consumer.Test1Consumer处理消息：TestMessage1{msg='这里是test1测试消息, 消息发送时间为: 2021-02-19T16:01:33.152'}
test1队列收到消息了, 消息内容为: {"msg":"这里是test1测试消息, 消息发送时间为: 2021-02-19T16:01:33.152","delayMinutes":1}, 消息接收时间为: 2021-02-19T16:02:33.276灵活控制消费者开启关闭
自定义注解 通过自定义注解能开启或关闭单个消费者, 由配置文件控制, 更改需要重启应用
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@ConditionalOnProperty(name = "oms.consumer.dispatch.enabled", havingValue = "true")
public @interface DispatchOrderCondition {
}监听容器开关
根据业务区分不同的监听容器, 个业务组下的交换机注册到各监听容器中, 通过http请求方式直接关闭开启监听容器
